Bautri Work
Mobile three-leg lifting system up to 3.3 tons: Quick to set up and can be used anywhere—even in narrow gardens and on slopes.
In Action
Remove boxwood
Remove root
Mobile lifting device
Unwind cable

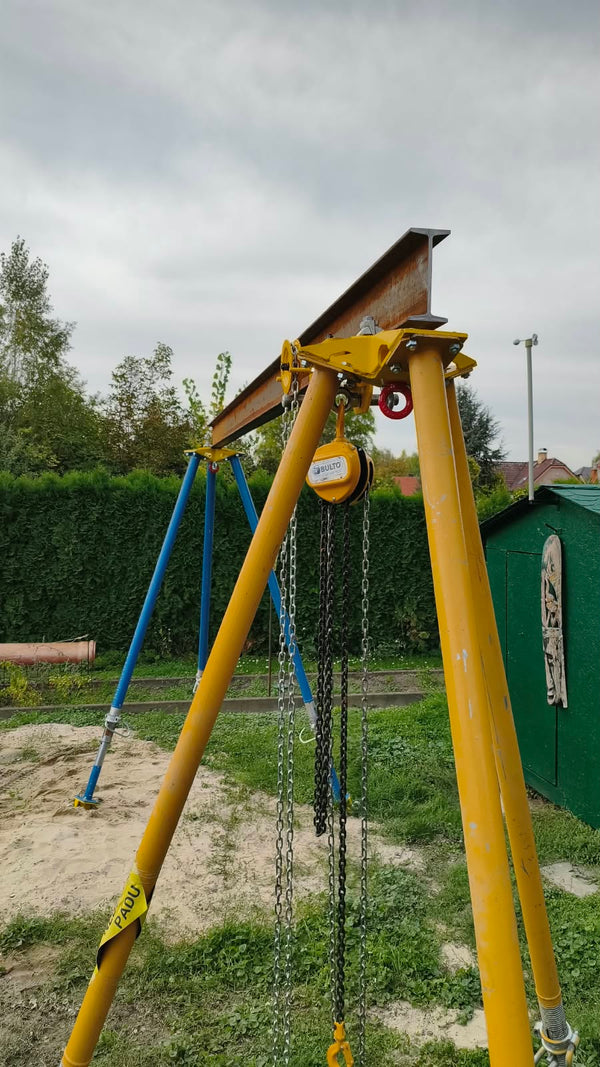

Gantry crane
Gantry crane & support tower
Lighting pole with fourth support
Light stand
Remove boxwood
Remove root
Mobile lifting device
Unwind cable
Gantry crane
Gantry crane & support tower
Lighting pole with fourth support
Light stand
Remove boxwood
Remove root
Mobile lifting device
Unwind cable
Gantry crane
Gantry crane & support tower
Lighting pole with fourth support
Light stand
Benefits
-
No damage to the garden
Unlike excavators or heavy machinery, Bautri Work does not leave behind torn-up lawns or damaged flower beds. The compact tripod can be placed directly above the root, protecting surrounding plants and areas.
-
Mobile and flexible in use
Bautri Work can be set up by one person in just a few minutes. Thanks to its modular design, it fits through standard doors and into any station wagon. Whether in a narrow backyard, indoors, or in the middle of the forest, the tripod is ready for immediate use. Removing roots without an excavator? No problem with Bautri Work—you can take the system wherever you need it!
-
Stable footing on almost any surface
Uneven ground or slopes? No problem. Each of the three legs is height-adjustable, allowing you to achieve a stable, vertical setup even on sloping or uneven surfaces. The system stands rock-solid on virtually any load-bearing surface and is variable in height.
-
Cost- and time-efficient
In many cases, Bautri Work replaces expensive special equipment and eliminates lengthy preparations. It is maintenance-free, easy to understand, and requires no motor or hydraulics—no fuel, no electricity. For municipalities and construction companies, this means lower costs and less logistics; for hobby gardeners, it means more speed and less effort.
Videos
More Information
Technical data & performance
Maximum load capacity (tension/compression): 3.3 tons (equivalent to approx. 33 kN) with class BD supports in accordance with EN 1065 or equivalent supports at a maximum system height of 3.50 m. 2.5 tons (equivalent to approx. 25 kN) with class B supports in accordance with EN 1065 or equivalent supports at a maximum system height of 4 m. System height: Variable up to approx. 4.0 m installation height (depending on the length of the construction supports used). Each prop is telescopic and can be adjusted separately to compensate for different heights and uneven terrain. Weight and transport: The system (head plate and three foot elements) weighs approx. 15 kg. Added to this is the weight of the three construction props, which varies depending on the material (steel or aluminum) and length. All components can be stored and transported compactly. Compatible props: Standard construction and formwork props in accordance with EN 1065 (classes B and BD) can be used. Equivalent spindle props such as the Ischebeck Titan HV or Peri Multiprop are also compatible, as is the Ischebeck Titan 2 with asymmetrical hole pattern. Recommendation for full load: Class B/D props, extended to a maximum of 3.5 m (for 3.3 t load capacity, see FAQ). Maximum extension length generally 4.0 m. Material and manufacture: The system is made of steel, is galvanized, and also has a KTL coating. Bautri is manufactured in Austria by Form-On (DOKA Group) under strict industrial quality standards. The design is engineered for durability in heavy-duty use.
Certifications: CE marking and certification in accordance with Machinery Directive 2006/42/EC (for the lifting and support function as a load-bearing device).
Safety & Testing
Bautri Work combines user-friendly technology with advanced engineering. The system can lift or support loads of up to 3.3 tons without bracing (depending on support and length). The robust construction made of galvanized and KTL-coated steel is DEKRA-tested and CE-certified in accordance with Machinery Directive 2006/42/EC. You receive tested safety with a type plate, CE mark, and test book; the requirements of DGUV Regulation 54 are taken into account. This combination of powerhouse and all-rounder is unparalleled—you will not find a comparable system that lifts such heavy loads and is so mobile and flexible at the same time.
Set Up
Assembly is straightforward: screw the components together on the floor, erect the tripod, make fine adjustments, attach the hoist to the central anchor point—done. No special tools are required. The screw connections are free of play.
